Other Pumps
Industrial Pump
Other Pumps

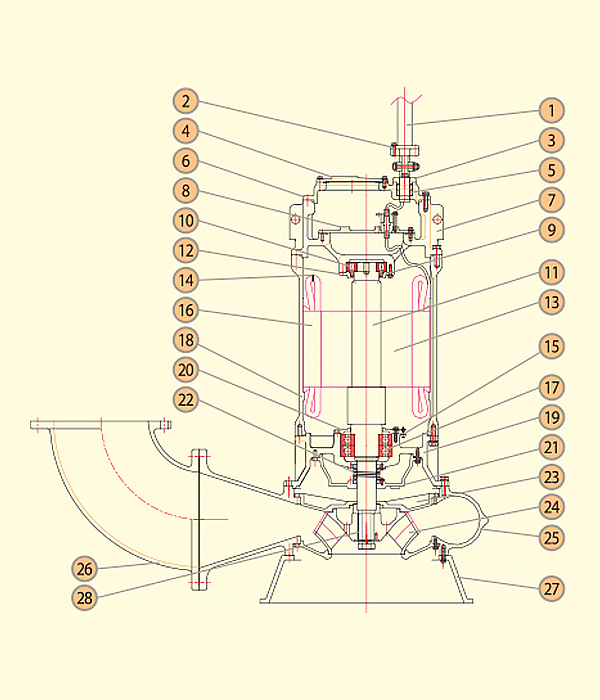

Internal Structure Diagram
1
Power cable
2
Cable Grand
3
Starting box
4
Inspection caba
5
cable bush
6
head cover
7
motor bracket
8
Terminalboard
9
oil seal
10
Upper bearing
11
Main shaft
12
Upper bearing cover
13
motor rotator
14
winding temperature sensor
15
Leak sensor
16
Motor stator
17
Lower bearing
18
motor frame
19
Bearing Housing
20
Lower bearing cover
21
SEAL CHAMBER
22
mechanical seal
23
Rear cover
24
Impella
25
Pump casing
26
discharged elbow
27
Stand
28
Key

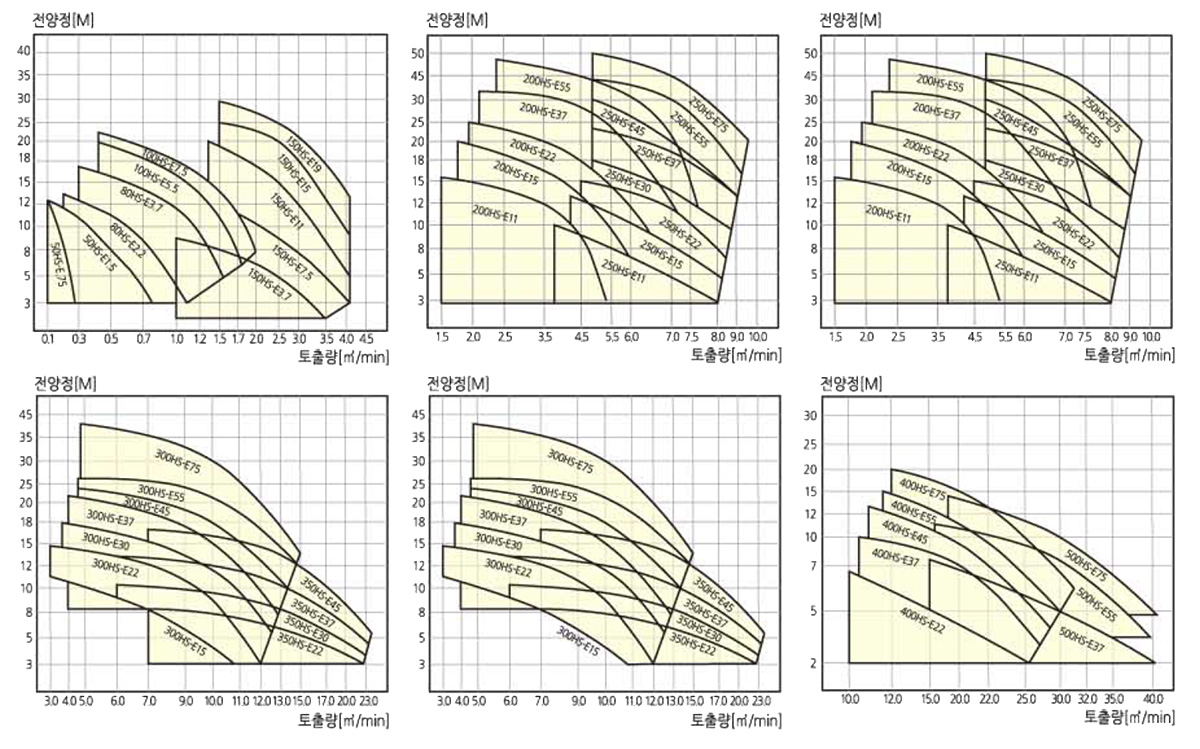

Characteristic curve
HS-WO
Semi-Open Pump for Drainage and Sewage
Product Features
- Minimizes clogging using a Semi-Open Impeller.
- Equipped with an auto-coupling device for convenient maintenance.
- High efficiency at high heads using a two-pole motor.
Applications
- Transfer of wastewater from industrial factories, buildings, and underground shopping centers
- Transfer of wastewater from subway stations
- Transfer of wastewater from sewage and wastewater treatment plants
- Suitable for other high head and low-flow applications
Product Specifications
- Discharge Diameter: 50mm - 200mm
- Pump Capacity: 0.08m³/min - 6.5m³/min
- Total Pump Head: 2m - 50m

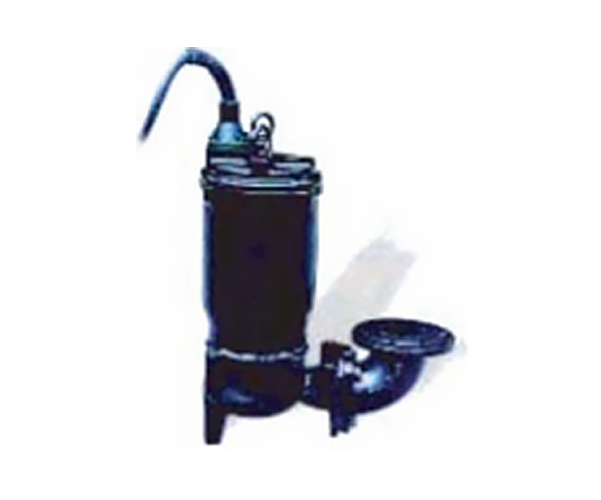

HS-SV
Vortex Pump for Sewage
Product Features
- Maximized discharge area using a Vortex Impeller, enhancing solid transfer capability.
- Compatible with two-pole or four-pole motors based on specifications, ensuring complete waterproofing.
- Equipped with an auto-coupling device for convenient maintenance.
Applications
- Transfer of raw sewage and sludge from septic tanks
- Transfer of raw water from livestock wastewater treatment plants and slaughterhouses
- Transfer of grey water from hospitals, hotels, restaurants, and buildings
- Transfer of raw water from other sewage treatment plants
Product Specifications
- Discharge Diameter: 50mm - 150mm
- Pump Capacity: 0.08m³/min - 3.0m³/min
- Total Pump Head: 2m - 25m

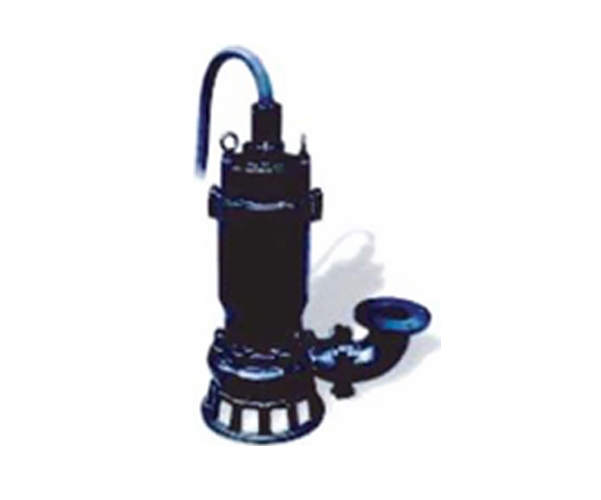

HS-DH
High-Head Drainage Pump
Product Features
- Increased motor cooling efficiency using a full-flow design.
- Enhanced waterproofing through a non-pressure design.
- Improved efficiency at high heads using a two-pole motor design.
Applications
- High-head transport for road, port, and dam construction projects
- Water supply and drainage for mines and underground tunnels
- Long-distance transport for golf courses and reservoirs
- Other high-head transports
Product Specifications
- Discharge Diameter: 50mm - 200mm
- Pump Capacity: 0.1m³/min - .70m³/min
- Total Pump Head: 20m - 180m
