Product Features

- The purpose is to install a pump in the sluice gate of the existing waterway without a new reservoir and drainage field to force drainage by the pump in an emergency.

Applications

- Drainage of rainwater pumping station, agricultural, sheep and drainage station
- a large sewage treatment plant
- Waterproofing for flood or heavy rain
- irrigation water, industrial water intake
- For the circulation of large amounts of water in parks, lakes, etc

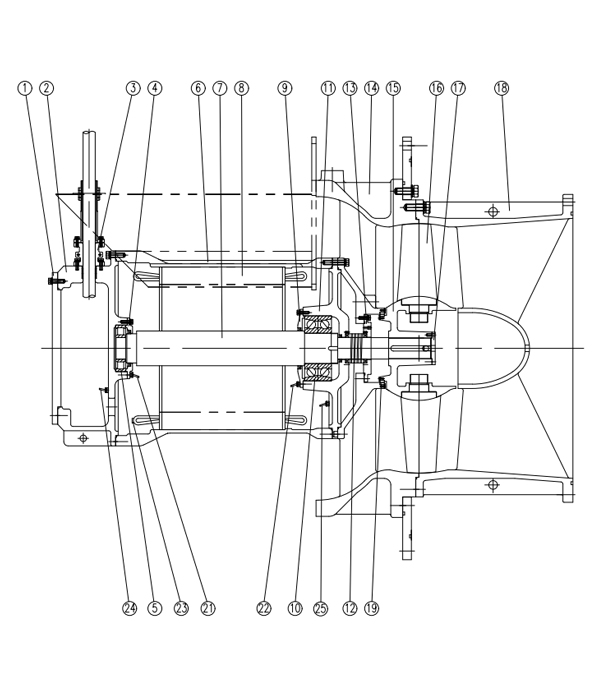

Internal Structure Diagram

head cover

Bracket

Stuffing Box

Upper bearing cover

Upper bearing

motor frame

pump shaft

rotor/stainer

Lower bearing cover

Lower bearing

Bearing Housing

mechanical seal

Seal Cover

Inhalation casing

propeller boss

Propellers

Endwasha

Information Casing

WEARING (LINERING)

Upper bearing temperature sensor

Lower bearing temperature sensor

Motor winding temperature sensor

Upper leak detection sensor

Lower leak detection sensor

Standard Specifications

Diameter	Type	Output	Poles (60Hz)	Total Pump Head	Discharge Volume	Poles (50Hz)
400	400-HSI-HIGPSG15	15	8	2.8	16	6
	400-HSI-HIGPSG19	19	8	3	20	6
	400-HSI-HIGPSG22	22	8	3.2	24	6
	400-HSI-HIGPSG30	30	6	4.8	19	4
	400-HSI-HIGPSG45	45	6	6	24	4
	400-HSI-HIGPSG55	55	6	6.3	28	4
500	500-HSI-HIGPSG19	19	8	2.8	22	8
	500-HSI-HIGPSG22	22	8	3	26	8
	500-HSI-HIGPSG30	30	8	3.2	33	8
	500-HSI-HIGPSG45	45	6	5.7	26	6
	500-HSI-HIGPSG55	55	6	6	33	6
	500-HSI-HIGPSG70	70	6	6.3	40	6
600	600-HSI-HIGPSG30	30	12	2.8	36	10
	600-HSI-HIGPSG37	37	12	3	45	10
	600-HSI-HIGPSG45	45	12	3.2	54	10
	600-HSI-HIGPSG60	60	8	5.7	40	6
	600-HSI-HIGPSG80	80	8	6	50	6
	600-HSI-HIGPSG100	100	8	6.3	60	6
700	700-HSI-HIGPSG30	30	14	2.8	44	10
	700-HSI-HIGPSG45	45	14	3	55	10
	700-HSI-HIGPSG55	55	14	3.2	66	10
	700-HSI-HIGPSG70	70	10	5.7	48	6
	700-HSI-HIGPSG100	100	10	6	60	6
	700-HSI-HIGPSG120	120	10	6.3	72	6
800	800-HSI-HIGPSG55	55	14	3.3	60	10
	800-HSI-HIGPSG70	70	14	3.5	75	10
	800-HSI-HIGPSG90	90	14	3.7	90	10
	800-HSI-HIGPSG100	100	10	5.7	68	8
	800-HSI-HIGPSG130	130	10	6	85	8
	800-HSI-HIGPSG170	170	10	6.3	102	8
900	900-HSI-HIGPSG70	70	16	3.3	80	12
	900-HSI-HIGPSG90	90	16	3.5	100	12
	900-HSI-HIGPSG110	110	16	3.7	120	12
	900-HSI-HIGPSG120	120	12	5.7	84	8
	900-HSI-HIGPSG160	160	12	6	105	8
	900-HSI-HIGPSG200	200	12	6.3	126	8
1000	1000-HSI-HIGPSG80	80	18	3.3	100	14
	1000-HSI-HIGPSG110	110	18	3.5	125	14
	1000-HSI-HIGPSG140	140	18	3.7	150	14
	1000-HSI-HIGPSG160	160	14	5.7	108	12
	1000-HSI-HIGPSG210	210	14	6	135	12
	1000-HSI-HIGPSG260	260	14	6.3	162	12
1100	1100-HSI-HIGPSG90	90	20	3.3	112	16
	1100-HSI-HIGPSG120	120	20	3.5	140	16
	1100-HSI-HIGPSG160	160	20	3.7	168	16
	1100-HSI-HIGPSG170	170	14	5.7	120	12
	1100-HSI-HIGPSG220	220	14	6	150	12
	1100-HSI-HIGPSG280	280	14	6.3	180	12
1200	1200-HSI-HIGPSG110	110	20	3.3	128	16
	1200-HSI-HIGPSG140	140	20	3.5	160	16
	1200-HSI-HIGPSG180	180	20	3.7	192	16
	1200-HSI-HIGPSG190	190	16	5.2	144	12
	1200-HSI-HIGPSG250	250	16	5.5	180	12
	1200-HSI-HIGPSG310	310	16	5.8	216	12
1350	1350-HSI-HIGPSG150	150	24	3.3	176	18
	1350-HSI-HIGPSG190	190	24	3.5	220	18
	1350-HSI-HIGPSG240	240	24	3.7	264	18
	1350-HSI-HIGPSG240	240	18	5.2	192	14
	1350-HSI-HIGPSG320	320	18	5.5	240	14
	1350-HSI-HIGPSG410	410	18	5.8	288	14
1500	1500-HSI-HIGPSG45	160	28	3.1	216	22
	1500-HSI-HIGPSG55	220	28	3.3	270	22
	1500-HSI-HIGPSG19	280	28	3.5	324	22
	1500-HSI-HIGPSG22	300	20	5.2	232	16
	1500-HSI-HIGPSG30	370	20	5.5	270	16
	1500-HSI-HIGPSG45	500	20	5.8	348	16
1650	1650-HSI-HIGPSG55	220	30	3.3	256	24
	1650-HSI-HIGPSG70	270	30	3.5	320	24
	1650-HSI-HIGPSG30	340	30	3.7	384	24
	1650-HSI-HIGPSG37	340	22	5.2	272	18
	1650-HSI-HIGPSG45	450	22	5.5	340	18
	1650-HSI-HIGPSG60	550	22	5.8	405	18
1800	1800-HSI-HIGPSG80	230	32	3.3	288	26
	1800-HSI-HIGPSG100	300	32	3.5	360	26
	1800-HSI-HIGPSG30	380	32	3.7	432	26
	1800-HSI-HIGPSG45	390	24	5.2	320	18
	1800-HSI-HIGPSG55	520	24	5.5	400	18
	1800-HSI-HIGPSG70	650	24	5.8	480	18
2000	2000-HSI-HIGPSG100	260	36	3.1	360	30
	2000-HSI-HIGPSG120	350	36	3.3	450	30
	2000-HSI-HIGPSG55	440	36	3.5	540	30
	2000-HSI-HIGPSG70	480	26	5.2	400	22
	2000-HSI-HIGPSG90	640	26	5.5	500	22
	2000-HSI-HIGPSG100	800	26	5.8	600	22
2200	2200-HSI-HIGPSG130	350	36	3.1	480	30
	2200-HSI-HIGPSG170	440	36	3.3	570	30
	2200-HSI-HIGPSG70	530	36	3.5	650	30
	2200-HSI-HIGPSG90	600	26	5.2	500	22
	2200-HSI-HIGPSG110	760	26	5.5	600	22
	2200-HSI-HIGPSG120	940	26	5.8	700	22
