Vertical Mixed Flow Pump | HANSUNG INDUSTRY

Product Features

- Designed for medium head and high flow rates, offering broad applicability.
- Precisely engineered impeller utilizing Mixed Flow methods.
- Simple and compact design for easy handling and installation.
- Maintenance-friendly structure with simple components.
- Maximized product reliability through early detection of abnormalities.

Applications

- Drainage for rainwater pumping stations, Agricultural irrigation/drainage station
- Large-scale sewage treatment plants
- Defense against flood or heavy rain
- Irrigation water, Industrial water intake
- High-volume water circulation for parks, lakes, and recreational water facilities

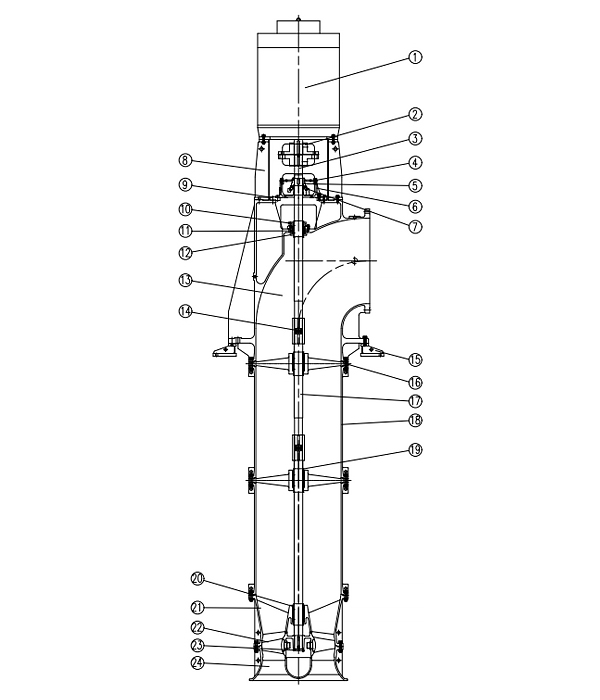

Internal Structure Diagram

Motor

motorbed

Gear coupling

Bearing cover

Bearing Adapter

Thrust bearings

Bearing housing

a discharge pipe

Grand

Grand packing

Stuffing Box

Stuffing Box Soldon Bearing

Stuffing box cover

Stuffing box sleeve

Sleeve Coupling Cover

Sleeve coupling

Retainer

Retainer Soldan Bearing

Retainer Sleeve

The external appearance

pump bed

pump shaft

Information Casing Sleeve

casing solder bearing

Information Casing

Wearing

Wearing cover

adjustment ring

Impeller

Impeller nut

a suction pipe

Standard Specifications

Diameter	Type	Output	Poles (60Hz)	Total Pump Head	Discharge Volume	Poles (50Hz)
400	400-HSI-HIVP30	30	8	6	16	6
	400-HSI-HIVP50	50	6	8	20	6
	400-HSI-HIVP75	75	6	10	24	6
	400-HSI-HIVP75	75	4	13	19	4
	400-HSI-HIVP110	110	4	15	24	4
	400-HSI-HIVP170	170	4	20	28	4
500	500-HSI-HIVP45	45	8	6	25	8
	500-HSI-HIVP70	70	8	8	30	6
	500-HSI-HIVP75	75	6	10	27	6
	500-HSI-HIVP120	120	6	13	32	6
	500-HSI-HIVP120	120	6	15	28	4
	500-HSI-HIVP180	180	4	20	33	4
600	600-HSI-HIVP60	60	10	6	38	8
	600-HSI-HIVP100	100	10	8	45	8
	600-HSI-HIVP90	90	8	8	40	8
	600-HSI-HIVP140	140	8	11	46	6
	600-HSI-HIVP150	150	6	13	42	6
	600-HSI-HIVP230	230	6	18	48	4
700	700-HSI-HIVP75	75	12	5.5	52	10
	700-HSI-HIVP120	120	12	7.5	60	10
	700-HSI-HIVP140	140	8	10	53	8
	700-HSI-HIVP210	210	8	13	62	6
	700-HSI-HIVP200	200	6	14	56	6
	700-HSI-HIVP320	320	6	19	65	6
800	800-HSI-HIVP80	80	16	4.5	68	14
	800-HSI-HIVP120	120	14	6	80	12
	800-HSI-HIVP130	130	12	7.5	70	10
	800-HSI-HIVP210	210	10	10	82	10
	800-HSI-HIVP220	220	8	12	72	8
	800-HSI-HIVP350	350	8	16	85	6
900	900-HSI-HIVP100	100	18	4.5	85	16
	900-HSI-HIVP150	150	18	6	100	14
	900-HSI-HIVP160	160	14	7.5	85	12
	900-HSI-HIVP250	250	12	10	100	10
	900-HSI-HIVP270	270	10	12	90	8
	900-HSI-HIVP420	420	8	16	105	8
1000	1000-HSI-HIVP110	110	20	4.5	100	16
	1000-HSI-HIVP180	180	18	6	120	14
	1000-HSI-HIVP200	200	14	7.5	107	12
	1000-HSI-HIVP310	310	12	10	125	10
	1000-HSI-HIVP300	300	12	11	110	10
	1000-HSI-HIVP480	480	10	15	130	8
1100	1100-HSI-HIVP120	120	22	4.4	110	18
	1100-HSI-HIVP210	210	20	6	140	16
	1100-HSI-HIVP310	310	18	7.4	170	16
	1100-HSI-HIVP290	290	14	10	120	10
	1100-HSI-HIVP380	380	14	10.5	150	12
	1100-HSI-HIVP610	610	12	14	180	10
1200	1200-HSI-HIVP150	150	24	4.5	137	20
	1200-HSI-HIVP190	190	24	5	160	20
	1200-HSI-HIVP200	200	20	6	140	16
	1200-HSI-HIVP320	320	18	8	165	14
	1200-HSI-HIVP260	260	16	7.5	145	14
	1200-HSI-HIVP410	410	14	10	170	12
1350	1350-HSI-HIVP180	180	26	4.5	170	22
	1350-HSI-HIVP240	240	26	5	200	22
	1350-HSI-HIVP270	270	22	6	185	18
	1350-HSI-HIVP420	420	20	8	220	16
	1350-HSI-HIVP370	370	20	7.5	205	16
	1350-HSI-HIVP570	570	18	10	240	14
1500	1500-HSI-HIVP250	250	30	4.5	235	26
	1500-HSI-HIVP300	300	30	5	255	24
	1500-HSI-HIVP390	390	26	6	275	22
	1500-HSI-HIVP470	470	20	8	250	18
	1500-HSI-HIVP480	480	22	7.5	270	18
	1500-HSI-HIVP680	680	18	10	290	16
1650	1650-HSI-HIVP270	270	32	4.5	255	26
	1650-HSI-HIVP330	330	30	5	284	26
	1650-HSI-HIVP440	440	28	6	315	24
	1650-HSI-HIVP510	510	22	8	275	18
	1650-HSI-HIVP540	540	24	7.5	306	20
	1650-HSI-HIVP790	790	20	10	340	18
1800	1800-HSI-HIVP340	340	34	4.5	325	30
	1800-HSI-HIVP410	410	32	5	350	28
	1800-HSI-HIVP530	530	30	6	380	26
	1800-HSI-HIVP630	630	24	8	340	20
	1800-HSI-HIVP640	640	26	7.5	370	22
	1800-HSI-HIVP930	930	22	10	400	18
2000	2000-HSI-HIVP440	440	38	4.5	420	32
	2000-HSI-HIVP530	530	36	5	460	32
	2000-HSI-HIVP690	690	34	6	500	30
	2000-HSI-HIVP830	830	26	8	450	22
	2000-HSI-HIVP830	830	28	7.5	480	24
	2000-HSI-HIVP1200	1200	24	10	520	22
2200	2200-HSI-HIVP500	500	40	4.5	480	34
	2200-HSI-HIVP650	650	40	5	570	34
	2200-HSI-HIVP900	900	38	6	650	32
	2200-HSI-HIVP950	950	28	8	500	24
	2200-HSI-HIVP1050	1050	30	7.5	600	26
