Vertical Axial Flow Pump | HANSUNG INDUSTRY

Product Features

- Designed for low head and high flow rates, offering broad applicability.
- Precisely engineered impeller utilizing Axial Flow methods.
- Simple and compact design for easy handling and installation.
- Maintenance-friendly structure with simple components.
- Maximized product reliability through early detection of abnormalities.

Applications

- Drainage for rainwater pumping stations, Agricultural irrigation/drainage station
- Large-scale sewage treatment plants
- Defense against flood or heavy rain
- Water intake for irrigation and industrial use
- High-volume water circulation for parks, lakes, and recreational water facilities

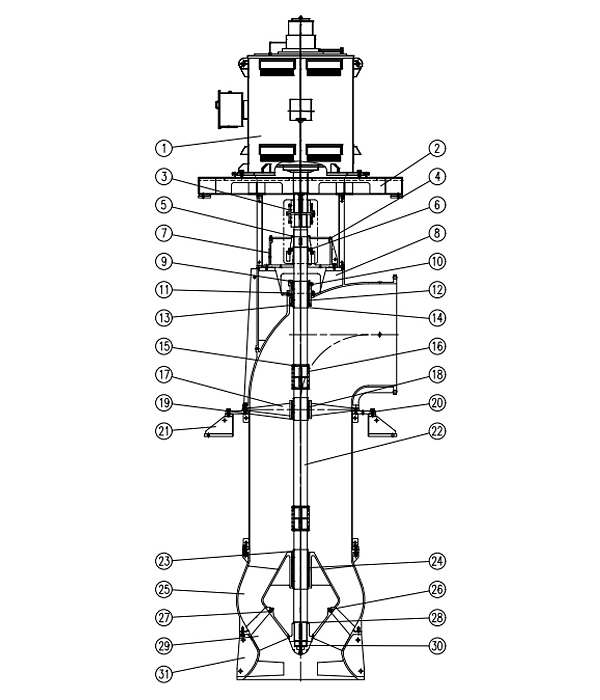

Internal Structure Diagram

Motor

flange coupling

line axis

Bearing cover

Bearing Adapter

Bearing housing

Thrust bearings

motorbed

Bearing housing seat

Grand

Grand packing

Stuffing Box

a discharge pipe

Sleeve coupling

pump bed

Retainer

pump shaft

The external appearance

Sleeve

Soldan Bearing

Guided casing

Impeller

Endwasha

a suction pipe

Standard Specifications

Diameter	Type	Output	Poles (60Hz)	Total Pump Head	Discharge Volume	Poles (50Hz)
400	400-HSI-HIVA15	15	8	2.8	16	6
	400-HSI-HIVA19	19	8	3	20	6
	400-HSI-HIVA22	22	8	3.2	24	6
	400-HSI-HIVA30	30	6	4.8	19	4
	400-HSI-HIVA45	45	6	6	24	4
	400-HSI-HIVA55	55	6	6.3	28	4
500	500-HSI-HIVA19	19	8	2.8	22	8
	500-HSI-HIVA22	22	8	3	26	8
	500-HSI-HIVA30	30	8	3.2	33	8
	500-HSI-HIVA45	45	6	5.7	26	6
	500-HSI-HIVA55	55	6	6	33	6
	500-HSI-HIVA70	70	6	6.3	40	6
600	600-HSI-HIVA30	30	12	2.8	36	10
	600-HSI-HIVA37	37	12	3	45	10
	600-HSI-HIVA45	45	12	3.2	54	10
	600-HSI-HIVA60	60	8	5.7	40	6
	600-HSI-HIVA80	80	8	6	50	6
	600-HSI-HIVA100	100	8	6.3	60	6
700	700-HSI-HIVA30	30	14	2.8	44	10
	700-HSI-HIVA45	45	14	3	55	10
	700-HSI-HIVA55	55	14	3.2	66	10
	700-HSI-HIVA70	70	10	5.7	48	6
	700-HSI-HIVA100	100	10	6	60	6
	700-HSI-HIVA120	120	10	6.3	72	6
800	800-HSI-HIVA55	55	14	3.3	60	10
	800-HSI-HIVA70	70	14	3.5	75	10
	800-HSI-HIVA90	90	14	3.7	90	10
	800-HSI-HIVA100	100	10	5.7	68	8
	800-HSI-HIVA130	130	10	6	85	8
	800-HSI-HIVA170	170	10	6.3	102	8
900	900-HSI-HIVA70	70	16	3.3	80	12
	900-HSI-HIVA90	90	16	3.5	100	12
	900-HSI-HIVA110	110	16	3.7	120	12
	900-HSI-HIVA120	120	12	5.7	84	8
	900-HSI-HIVA160	160	12	6	105	8
	900-HSI-HIVA200	200	12	6.3	126	8
1000	1000-HSI-HIVA80	80	18	3.3	100	14
	1000-HSI-HIVA110	110	18	3.5	125	14
	1000-HSI-HIVA140	140	18	3.7	150	14
	1000-HSI-HIVA160	160	14	5.7	108	12
	1000-HSI-HIVA210	210	14	6	135	12
	1000-HSI-HIVA260	260	14	6.3	162	12
1100	1100-HSI-HIVA90	90	20	3.3	112	16
	1100-HSI-HIVA120	120	20	3.5	140	16
	1100-HSI-HIVA160	160	20	3.7	168	16
	1100-HSI-HIVA170	170	14	5.7	120	12
	1100-HSI-HIVA220	220	14	6	150	12
	1100-HSI-HIVA280	280	14	6.3	180	12
1200	1200-HSI-HIVA110	110	20	3.3	128	16
	1200-HSI-HIVA140	140	20	3.5	160	16
	1200-HSI-HIVA180	180	20	3.7	192	16
	1200-HSI-HIVA190	190	16	5.2	144	12
	1200-HSI-HIVA250	250	16	5.5	180	12
	1200-HSI-HIVA310	310	16	5.8	216	12
1350	1350-HSI-HIVA150	150	24	3.3	176	18
	1350-HSI-HIVA190	190	24	3.5	220	18
	1350-HSI-HIVA240	240	24	3.7	264	18
	1350-HSI-HIVA240	240	18	5.2	192	14
	1350-HSI-HIVA320	320	18	5.5	240	14
	1350-HSI-HIVA410	410	18	5.8	288	14
1500	1500-HSI-HIVA45	160	28	3.1	216	22
	1500-HSI-HIVA55	220	28	3.3	270	22
	1500-HSI-HIVA19	280	28	3.5	324	22
	1500-HSI-HIVA22	300	20	5.2	232	16
	1500-HSI-HIVA30	370	20	5.5	270	16
	1500-HSI-HIVA45	500	20	5.8	348	16
1650	1650-HSI-HIVA55	220	30	3.3	256	24
	1650-HSI-HIVA70	270	30	3.5	320	24
	1650-HSI-HIVA30	340	30	3.7	384	24
	1650-HSI-HIVA37	340	22	5.2	272	18
	1650-HSI-HIVA45	450	22	5.5	340	18
	1650-HSI-HIVA60	550	22	5.8	405	18
1800	1800-HSI-HIVA80	230	32	3.3	288	26
	1800-HSI-HIVA100	300	32	3.5	360	26
	1800-HSI-HIVA30	380	32	3.7	432	26
	1800-HSI-HIVA45	390	24	5.2	320	18
	1800-HSI-HIVA55	520	24	5.5	400	18
	1800-HSI-HIVA70	650	24	5.8	480	18
2000	2000-HSI-HIVA100	260	36	3.1	360	30
	2000-HSI-HIVA120	350	36	3.3	450	30
	2000-HSI-HIVA55	440	36	3.5	540	30
	2000-HSI-HIVA70	480	26	5.2	400	22
	2000-HSI-HIVA90	640	26	5.5	500	22
	2000-HSI-HIVA100	800	26	5.8	600	22
2200	2200-HSI-HIVA130	350	36	3.1	480	30
	2200-HSI-HIVA170	440	36	3.3	570	30
	2200-HSI-HIVA70	530	36	3.5	650	30
	2200-HSI-HIVA90	600	26	5.2	500	22
	2200-HSI-HIVA110	760	26	5.5	600	22
	2200-HSI-HIVA120	940	26	5.8	700	22
