Submersible Mixed Flow Pump | HANSUNG INDUSTRY

Product Features

- Designed for medium head and high flow rates, offering broad applicability.
- Precisely engineered impeller utilizing Mixed Flow methods.
- Simple and compact design for easy handling and installation.
- Maintenance-friendly structure with simple components.
- Maximized product reliability through early detection of abnormalities.

Applications

- Drainage for rainwater pumping stations, Agricultural irrigation/drainage station
- Large-scale sewage treatment plants
- Defense against flood or heavy rain
- Irrigation water, Industrial water intake
- High-volume water circulation for parks, lakes, and recreational water facilities

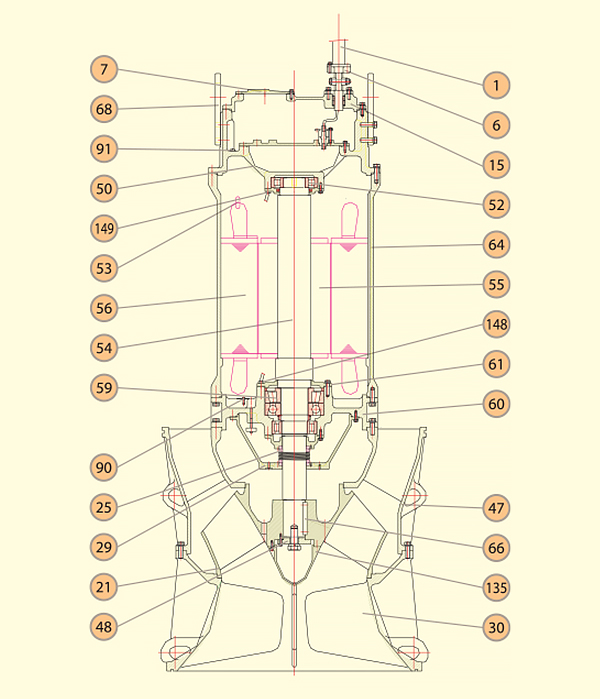

Internal Structure Diagram

Power Cable

Cable Gland

Inspection Cover

Head Cover

Impeller

Mechanical Seal

Seal Chamber

Lower Casing

Upper Casing

Shaft-End Washer

Motor Bracket

Upper Bearing

Motor Coil Temperature Sensor

Main Shaft

Rotor

Stator

Lower Ball Bearing

Bearing Housing

Lower Bearing Cover

Motor Frame

Key

Lifting Ring

Leakage Sensor (S/S)

Leakage Sensor (M/S)

135

Impeller Cap

148

Lower Bearing Temperature Sensor

149

Upper Bearing Temperature Sensor

Characteristic curve

Standard Specifications

Diameter	Type	Output	Poles (60Hz)	Total Pump Head	Discharge Volume	Poles (50Hz)
400	400-HSI-HISMPMF30	30	8	6	16	6
	400-HSI-HISMPMF50	50	6	8	20	6
	400-HSI-HISMPMF75	75	6	10	24	6
	400-HSI-HISMPMF75	75	4	13	19	4
	400-HSI-HISMPMF110	110	4	15	24	4
	400-HSI-HISMPMF170	170	4	20	28	4
500	500-HSI-HISMPMF45	45	8	6	25	8
	500-HSI-HISMPMF70	70	8	8	30	6
	500-HSI-HISMPMF75	75	6	10	27	6
	500-HSI-HISMPMF120	120	6	13	32	6
	500-HSI-HISMPMF120	120	6	15	28	4
	500-HSI-HISMPMF180	180	4	20	33	4
600	600-HSI-HISMPMF60	60	10	6	38	8
	600-HSI-HISMPMF100	100	10	8	45	8
	600-HSI-HISMPMF90	90	8	8	40	8
	600-HSI-HISMPMF140	140	8	11	46	6
	600-HSI-HISMPMF150	150	6	13	42	6
	600-HSI-HISMPMF230	230	6	18	48	4
700	700-HSI-HISMPMF75	75	12	5.5	52	10
	700-HSI-HISMPMF120	120	12	7.5	60	10
	700-HSI-HISMPMF140	140	8	10	53	8
	700-HSI-HISMPMF210	210	8	13	62	6
	700-HSI-HISMPMF200	200	6	14	56	6
	700-HSI-HISMPMF320	320	6	19	65	6
800	800-HSI-HISMPMF80	80	16	4.5	68	14
	800-HSI-HISMPMF120	120	14	6	80	12
	800-HSI-HISMPMF130	130	12	7.5	70	10
	800-HSI-HISMPMF210	210	10	10	82	10
	800-HSI-HISMPMF220	220	8	12	72	8
	800-HSI-HISMPMF350	350	8	16	85	6
900	900-HSI-HISMPMF100	100	18	4.5	85	16
	900-HSI-HISMPMF150	150	18	6	100	14
	900-HSI-HISMPMF160	160	14	7.5	85	12
	900-HSI-HISMPMF250	250	12	10	100	10
	900-HSI-HISMPMF270	270	10	12	90	8
	900-HSI-HISMPMF420	420	8	16	105	8
1000	1000-HSI-HISMPMF110	110	20	4.5	100	16
	1000-HSI-HISMPMF180	180	18	6	120	14
	1000-HSI-HISMPMF200	200	14	7.5	107	12
	1000-HSI-HISMPMF310	310	12	10	125	10
	1000-HSI-HISMPMF300	300	12	11	110	10
	1000-HSI-HISMPMF480	480	10	15	130	8
1100	1100-HSI-HISMPMF120	120	22	4.4	110	18
	1100-HSI-HISMPMF210	210	20	6	140	16
	1100-HSI-HISMPMF310	310	18	7.4	170	16
	1100-HSI-HISMPMF290	290	14	10	120	10
	1100-HSI-HISMPMF380	380	14	10.5	150	12
	1100-HSI-HISMPMF610	610	12	14	180	10
1200	1200-HSI-HISMPMF150	150	24	4.5	137	20
	1200-HSI-HISMPMF190	190	24	5	160	20
	1200-HSI-HISMPMF200	200	20	6	140	16
	1200-HSI-HISMPMF320	320	18	8	165	14
	1200-HSI-HISMPMF260	260	16	7.5	145	14
	1200-HSI-HISMPMF410	410	14	10	170	12
1350	1350-HSI-HISMPMF180	180	26	4.5	170	22
	1350-HSI-HISMPMF240	240	26	5	200	22
	1350-HSI-HISMPMF270	270	22	6	185	18
	1350-HSI-HISMPMF420	420	20	8	220	16
	1350-HSI-HISMPMF370	370	20	7.5	205	16
	1350-HSI-HISMPMF570	570	18	10	240	14
1500	1500-HSI-HISMPMF250	250	30	4.5	235	26
	1500-HSI-HISMPMF300	300	30	5	255	24
	1500-HSI-HISMPMF390	390	26	6	275	22
	1500-HSI-HISMPMF470	470	20	8	250	18
	1500-HSI-HISMPMF480	480	22	7.5	270	18
	1500-HSI-HISMPMF680	680	18	10	290	16
1650	1650-HSI-HISMPMF270	270	32	4.5	255	26
	1650-HSI-HISMPMF330	330	30	5	284	26
	1650-HSI-HISMPMF440	440	28	6	315	24
	1650-HSI-HISMPMF510	510	22	8	275	18
	1650-HSI-HISMPMF540	540	24	7.5	306	20
	1650-HSI-HISMPMF790	790	20	10	340	18
1800	1800-HSI-HISMPMF340	340	34	4.5	325	30
	1800-HSI-HISMPMF410	410	32	5	350	28
	1800-HSI-HISMPMF530	530	30	6	380	26
	1800-HSI-HISMPMF630	630	24	8	340	20
	1800-HSI-HISMPMF640	640	26	7.5	370	22
	1800-HSI-HISMPMF930	930	22	10	400	18
2000	2000-HSI-HISMPMF440	440	38	4.5	420	32
	2000-HSI-HISMPMF530	530	36	5	460	32
	2000-HSI-HISMPMF690	690	34	6	500	30
	2000-HSI-HISMPMF830	830	26	8	450	22
	2000-HSI-HISMPMF830	830	28	7.5	480	24
	2000-HSI-HISMPMF1200	1200	24	10	520	22
2200	2200-HSI-HISMPMF500	500	40	4.5	480	34
	2200-HSI-HISMPMF650	650	40	5	570	34
	2200-HSI-HISMPMF900	900	38	6	650	32
	2200-HSI-HISMPMF950	950	28	8	500	24
	2200-HSI-HISMPMF1050	1050	30	7.5	600	26
	2200-HSI-HISMPMF1600	1600	28	10	700	24
