Submersible Axial Flow Pump | HANSUNG INDUSTRY

Product Features

- Designed for low head and high flow rates, offering broad applicability.
- Precisely engineered impeller utilizing Axial Flow methods.
- Simple and compact design for easy handling and installation.
- Maintenance-friendly structure with simple components.
- Maximized product reliability through early detection of abnormalities.

Applications

- Drainage for rainwater pumping stations, Agricultural irrigation/drainage station
- Large-scale sewage treatment plants
- Defense against flood or heavy rain
- Water intake for irrigation and industrial use
- High-volume water circulation for parks, lakes, and recreational water facilities

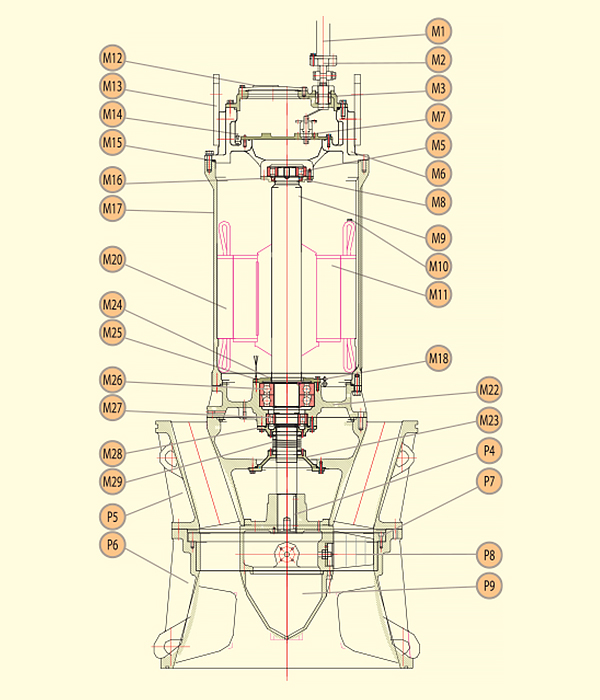

Internal Structure Diagram

Power Cable

Cable Gland

Head Cover

Upper Bearing

Motor Bracket

Terminal Board

Oil Seal

Main Shaft

M10

Motor Coil Temperature Sensor

M11

Rotor

M12

Inspection Cover

M13

Lifting Ring

M14

Leakage Sensor(M/S)

M15

O-Ring

M16

Upper Bearing Cover

M17

Motor Frame

M18

Leakage Sensor (S/S)

M20

Motor Stator

M22

Bearing Housing

M23

Lower Seal Chamber

M24

Lower Bearing Cover

M25

Lower Bearing Temperature Sensor

M26

Lower Ball Bearing

M27

Lower Roller Bearing

M28

Water Seal Chamber

M29

Mechanical Seal

Key

Upper Casing

Lower Casing

Wearing

Propeller Vane

Hub/Cap

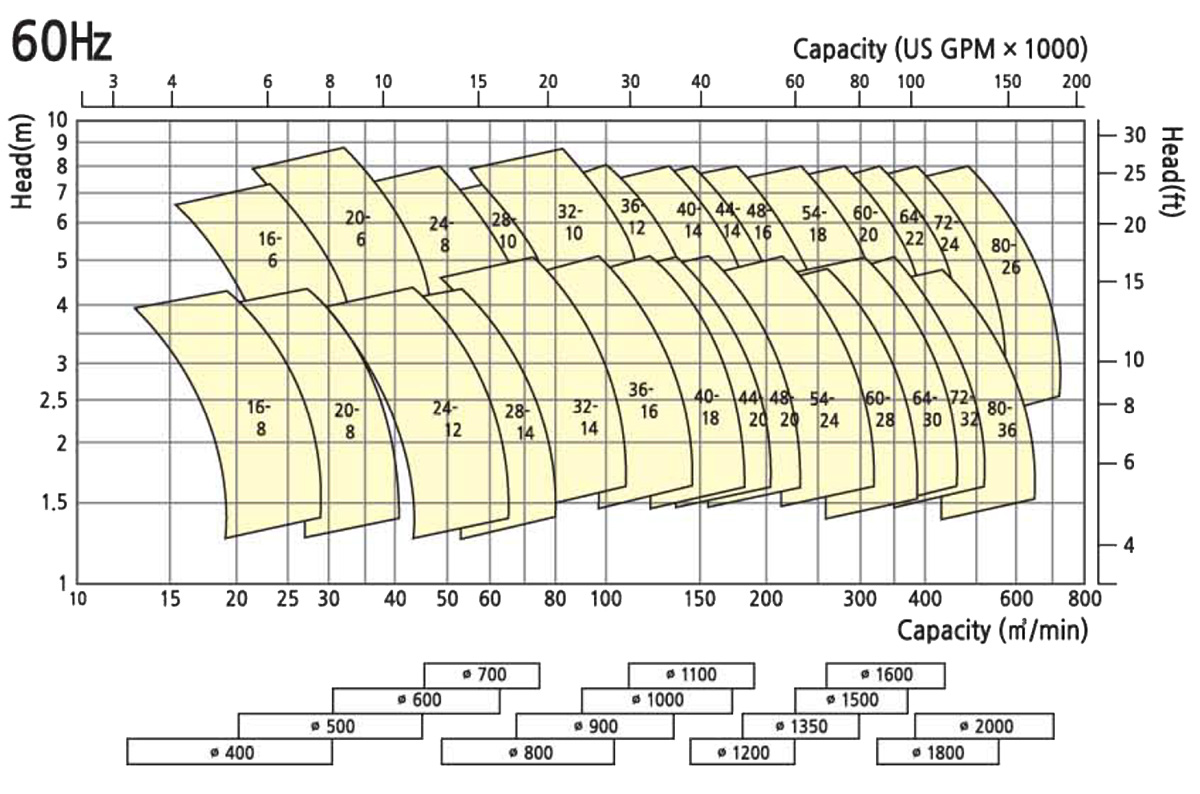

Characteristic curve

Standard Specifications

Diameter	Type	Output	Poles (60Hz)	Total Pump Head	Discharge Volume	Poles (50Hz)
400	400-HSI-HISMPA15	15	8	2.8	16	6
	400-HSI-HISMPA19	19	8	3	20	6
	400-HSI-HISMPA22	22	8	3.2	24	6
	400-HSI-HISMPA30	30	6	4.8	19	4
	400-HSI-HISMPA45	45	6	6	24	4
	400-HSI-HISMPA55	55	6	6.3	28	4
500	500-HSI-HISMPA19	19	8	2.8	22	8
	500-HSI-HISMPA22	22	8	3	26	8
	500-HSI-HISMPA30	30	8	3.2	33	8
	500-HSI-HISMPA45	45	6	5.7	26	6
	500-HSI-HISMPA55	55	6	6	33	6
	500-HSI-HISMPA70	70	6	6.3	40	6
600	600-HSI-HISMPA30	30	12	2.8	36	10
	600-HSI-HISMPA37	37	12	3	45	10
	600-HSI-HISMPA45	45	12	3.2	54	10
	600-HSI-HISMPA60	60	8	5.7	40	6
	600-HSI-HISMPA80	80	8	6	50	6
	600-HSI-HISMPA100	100	8	6.3	60	6
700	700-HSI-HISMPA30	30	14	2.8	44	10
	700-HSI-HISMPA45	45	14	3	55	10
	700-HSI-HISMPA55	55	14	3.2	66	10
	700-HSI-HISMPA70	70	10	5.7	48	6
	700-HSI-HISMPA100	100	10	6	60	6
	700-HSI-HISMPA120	120	10	6.3	72	6
800	800-HSI-HISMPA55	55	14	3.3	60	10
	800-HSI-HISMPA70	70	14	3.5	75	10
	800-HSI-HISMPA90	90	14	3.7	90	10
	800-HSI-HISMPA100	100	10	5.7	68	8
	800-HSI-HISMPA130	130	10	6	85	8
	800-HSI-HISMPA170	170	10	6.3	102	8
900	900-HSI-HISMPA70	70	16	3.3	80	12
	900-HSI-HISMPA90	90	16	3.5	100	12
	900-HSI-HISMPA110	110	16	3.7	120	12
	900-HSI-HISMPA120	120	12	5.7	84	8
	900-HSI-HISMPA160	160	12	6	105	8
	900-HSI-HISMPA200	200	12	6.3	126	8
1000	1000-HSI-HISMPA80	80	18	3.3	100	14
	1000-HSI-HISMPA110	110	18	3.5	125	14
	1000-HSI-HISMPA140	140	18	3.7	150	14
	1000-HSI-HISMPA160	160	14	5.7	108	12
	1000-HSI-HISMPA210	210	14	6	135	12
	1000-HSI-HISMPA260	260	14	6.3	162	12
1100	1100-HSI-HISMPA90	90	20	3.3	112	16
	1100-HSI-HISMPA120	120	20	3.5	140	16
	1100-HSI-HISMPA160	160	20	3.7	168	16
	1100-HSI-HISMPA170	170	14	5.7	120	12
	1100-HSI-HISMPA220	220	14	6	150	12
	1100-HSI-HISMPA280	280	14	6.3	180	12
1200	1200-HSI-HISMPA110	110	20	3.3	128	16
	1200-HSI-HISMPA140	140	20	3.5	160	16
	1200-HSI-HISMPA180	180	20	3.7	192	16
	1200-HSI-HISMPA190	190	16	5.2	144	12
	1200-HSI-HISMPA250	250	16	5.5	180	12
	1200-HSI-HISMPA310	310	16	5.8	216	12
1350	1350-HSI-HISMPA150	150	24	3.3	176	18
	1350-HSI-HISMPA190	190	24	3.5	220	18
	1350-HSI-HISMPA240	240	24	3.7	264	18
	1350-HSI-HISMPA240	240	18	5.2	192	14
	1350-HSI-HISMPA320	320	18	5.5	240	14
	1350-HSI-HISMPA410	410	18	5.8	288	14
1500	1500-HSI-HISMPA45	160	28	3.1	216	22
	1500-HSI-HISMPA55	220	28	3.3	270	22
	1500-HSI-HISMPA19	280	28	3.5	324	22
	1500-HSI-HISMPA22	300	20	5.2	232	16
	1500-HSI-HISMPA30	370	20	5.5	270	16
	1500-HSI-HISMPA45	500	20	5.8	348	16
1650	1650-HSI-HISMPA55	220	30	3.3	256	24
	1650-HSI-HISMPA70	270	30	3.5	320	24
	1650-HSI-HISMPA30	340	30	3.7	384	24
	1650-HSI-HISMPA37	340	22	5.2	272	18
	1650-HSI-HISMPA45	450	22	5.5	340	18
	1650-HSI-HISMPA60	550	22	5.8	405	18
1800	1800-HSI-HISMPA80	230	32	3.3	288	26
	1800-HSI-HISMPA100	300	32	3.5	360	26
	1800-HSI-HISMPA30	380	32	3.7	432	26
	1800-HSI-HISMPA45	390	24	5.2	320	18
	1800-HSI-HISMPA55	520	24	5.5	400	18
	1800-HSI-HISMPA70	650	24	5.8	480	18
2000	2000-HSI-HISMPA100	260	36	3.1	360	30
	2000-HSI-HISMPA120	350	36	3.3	450	30
	2000-HSI-HISMPA55	440	36	3.5	540	30
	2000-HSI-HISMPA70	480	26	5.2	400	22
	2000-HSI-HISMPA90	640	26	5.5	500	22
	2000-HSI-HISMPA100	800	26	5.8	600	22
2200	2200-HSI-HISMPA130	350	36	3.1	480	30
	2200-HSI-HISMPA170	440	36	3.3	570	30
	2200-HSI-HISMPA70	530	36	3.5	650	30
	2200-HSI-HISMPA90	600	26	5.2	500	22
	2200-HSI-HISMPA110	760	26	5.5	600	22
	2200-HSI-HISMPA120	940	26	5.8	700	22
